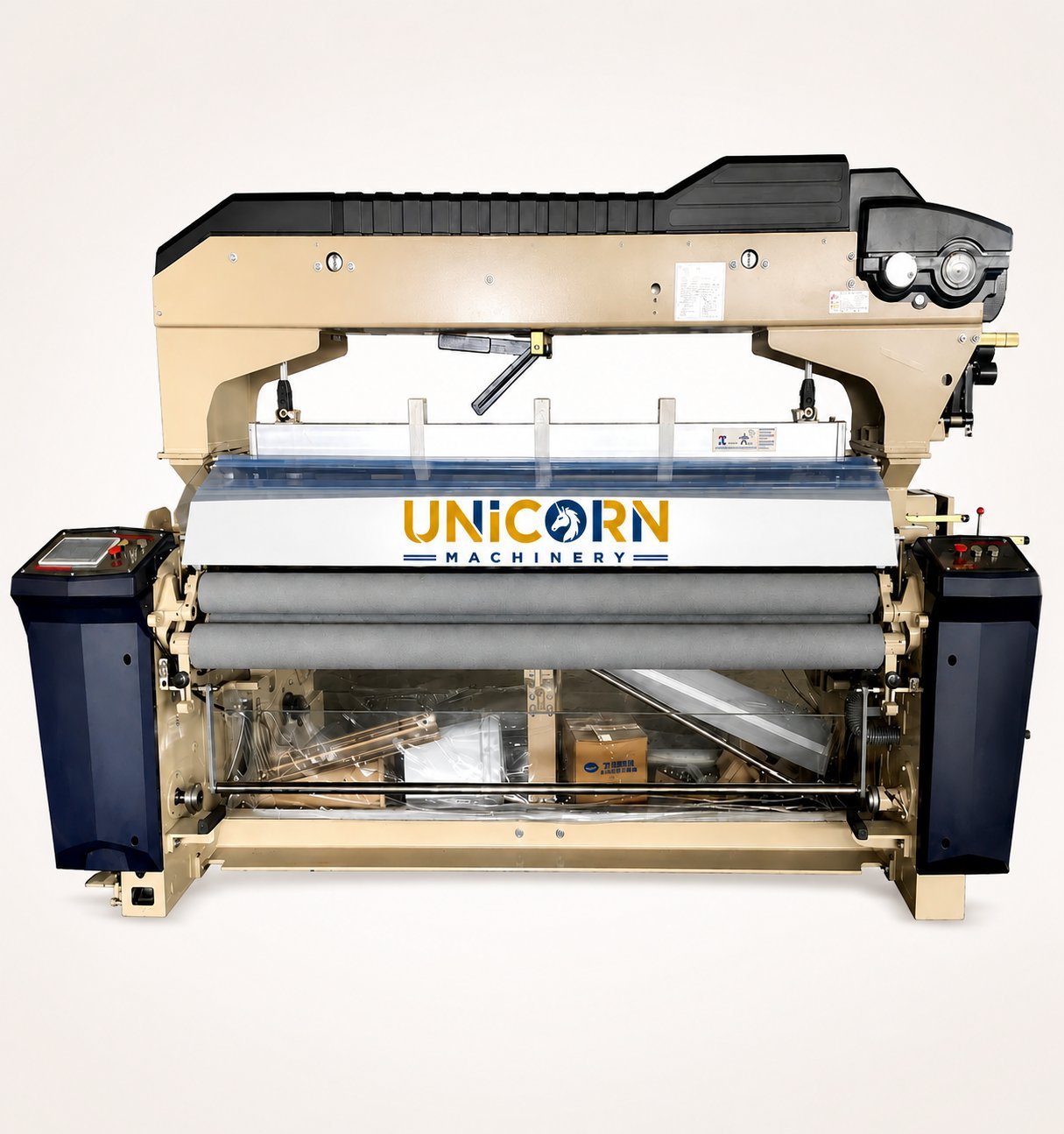

WATER JET LOOM
Advanced Water Jet Loom for High-Speed Textile Weaving
Unicorn Machinery provides advanced Water Jet Loom Machines designed to support fast, efficient and consistent weaving operations for modern textile manufacturing. Water jet weaving technology uses a controlled jet of water for weft insertion, making it particularly suitable for high-speed production with compatible synthetic filament yarns.
Designed for productivity and dependable operation, our Water Jet Loom solutions can support textile manufacturers and weaving units looking to improve production efficiency while maintaining consistent fabric formation. The machinery combines modern weaving technology with a production-focused design for demanding textile environments.
Enquire About This Machine
WATER JET LOOM MODEL
AQ-822 Water Jet Loom
Single Pump & Double Nozzle with Dobby Water Jet Loom
MODEL
AQ-822
Main Features
High-Speed Heavy-Duty Water Jet Loom
The AQ-822 is a double-nozzle, high-speed and heavy-duty water jet loom developed for stable and efficient textile weaving. Its enlarged machine frame and expanded beam support area help improve overall machine stability and resistance to vibration during high-speed operation.
The machine incorporates an improved take-up design, strengthened transmission and opening systems, and increased weft insertion force to support demanding high-density and high-weight fabric production.
High-Speed Weaving
Heavy-Duty Structure
Double Nozzle System
Stable Fabric Production
Machine Technology
Basic Configuration
Strengthened Framework
The machine frame structure is strengthened to improve rigidity and support stable operation during high-speed weaving.
Waste Silk Ware
Designed with a titanium-made joint bearing, scissors and scissors spring to support efficient weaving operation.
Mechanical Water Absorption
Features domestically produced water absorption fans with mature technology for stable and environmentally friendly operation.
Mechanical Let-Off
Different cam weights can be configured according to production requirements and fabric weaving tension needs.
Positive Main Pump Device
Equipped with a reasonably designed transmission system to support stable and efficient weaving performance.
Mechanical Twisting
The transmission mechanism is designed to support smooth operation and convenient machine maintenance.
WATER JET LOOM MODEL
AQ-8100 Water Jet Loom
Single Pump & Double Nozzle with Dobby Water Jet Loom
MODEL
AQ-8100
Main Features
Ultra-High-Speed Water Jet Loom for Advanced Weaving
The AQ-8100 Water Jet Loom is designed around ultra-high-speed weaving performance. Its optimized beat-up structure and shedding system work together with a newly developed U-shaped short-spacing nozzle to further improve weft insertion performance and support efficient textile production.
A strengthened machine frame and improved warp let-off system help shorten the cloth path before weaving and enhance beat-up performance. The design supports stable operation across different fabric widths, densities and weaving requirements, from fine yarn applications to heavier and more complex fabric structures.
Up to 1400 RPM
Double Nozzle System
Optimized Beat-Up System
Energy-Efficient Drive
Machine Technology
Advanced Performance Features
Optimized Weft Insertion
The newly developed U-shaped short-spacing nozzle works with the optimized machine structure to improve weft insertion performance during high-speed weaving.
Strengthened Machine Frame
A reinforced frame structure supports machine stability and helps improve beat-up performance for demanding high-speed production conditions.
Flexible Fabric Weaving
The machine can adapt to different widths and high-density fabrics, ranging from fine yarn to thicker yarn and from standard fabrics to double-layer fabrics.
Enhanced Beat-Up System
A U-type weft beat-up shaft, special balancing structure and reinforced support system help increase beat-up force while supporting long-term machine operation.
Centralized Lubrication
The centralized lubrication system supports smooth machine operation and helps reduce wear across important moving components.
Efficient Direct Drive
The brochure specifies a four-pulse direct-drive motor system designed to help reduce energy consumption while supporting variable-speed weaving operation.
Machine Configuration
Retrofit Configuration
Integrated Frame
A rigid integrated machine structure is designed to improve overall stability and support dependable operation during continuous weaving.
Electronic Take-Up
Electronic take-up technology supports controlled fabric movement and helps maintain stable operation during production.
Electronic Let-Off
The electronic let-off system is designed to control warp tension and support stable weaving across changing production requirements.
Double Jet Structure
The double-jet configuration supports efficient weft insertion and is designed for higher weaving performance across suitable fabric applications.
Direct Drive Motor
The direct-drive system supports efficient power transmission and allows machine speed to be controlled without changing traditional pulleys.
Intelligent Operating System
An intelligent operating interface supports machine parameter adjustment and helps operators manage different weaving requirements conveniently.
WATER JET LOOM MODEL
AQ-508 Water Jet Loom
High-Speed Heavy Water Jet Loom
MODEL
AQ-508
Maximum Speed
1400 RPM
Main Features
High-Speed Heavy-Duty Loom Designed for Stable Weaving
The AQ-508 High-Speed Heavy Water Jet Loom adopts an integrated wallboard structure with improvements to the machine frame, beat-up mechanism and shedding system. The optimized structure is designed to enhance machine stability and support dependable high-speed weaving.
Its improved weft insertion system supports efficient operation across suitable high-speed weaving applications. The machine also incorporates an optimized beat-up shaft and support structure to increase beating force and improve the overall operating stability of the loom.
Up to 1400 RPM
Integrated Frame Structure
Optimized Weft Insertion
Improved Machine Stability
Performance Engineering
AQ-508 Core Machine Features
Integrated Wallboard Structure
The integrated wallboard structure strengthens the machine frame and supports improved rigidity and stability during high-speed weaving.
Optimized Weft Insertion
The optimized weft insertion system is designed to improve insertion efficiency and adapt to demanding high-speed weaving requirements.
Enhanced Beat-Up System
An improved beat-up shaft and support system help increase beating force and support consistent fabric formation during production.
Lower Center of Gravity
The machine structure lowers the center of gravity and improves the warp position to help achieve smoother and more stable weaving performance.
01
Centralized Lubrication
Supports smooth operation of key mechanical components during continuous production.
02
Reinforced Support System
Improved support structures help maintain machine rigidity under demanding weaving conditions.
03
High-Speed Performance
Designed to support productive textile weaving with a stated maximum speed of 1400 RPM.
