TWO HEAD EMBROIDERY MACHINE
Efficient Two Head Machine for Productive Embroidery
Unicorn Machinery provides advanced Two Head Embroidery Machines designed to improve productivity while maintaining precise and consistent stitching. With two embroidery heads operating simultaneously, the machine is suitable for garment manufacturers, embroidery units and businesses looking to increase output without moving directly to a larger multi-head production system.
The CB1202 and CB1502 Series combine computerized operation, dual-head production and flexible embroidery capability. Designed for commercial embroidery requirements, the machines support garment, flat and cap embroidery while helping businesses achieve dependable output and consistent embroidery quality.
Available Models
CB1202 / CB1502
Main Shaft Speed
1200 RPM
Embroidery Heads
2 Heads
Head Spacing
500 mm
CB SERIES

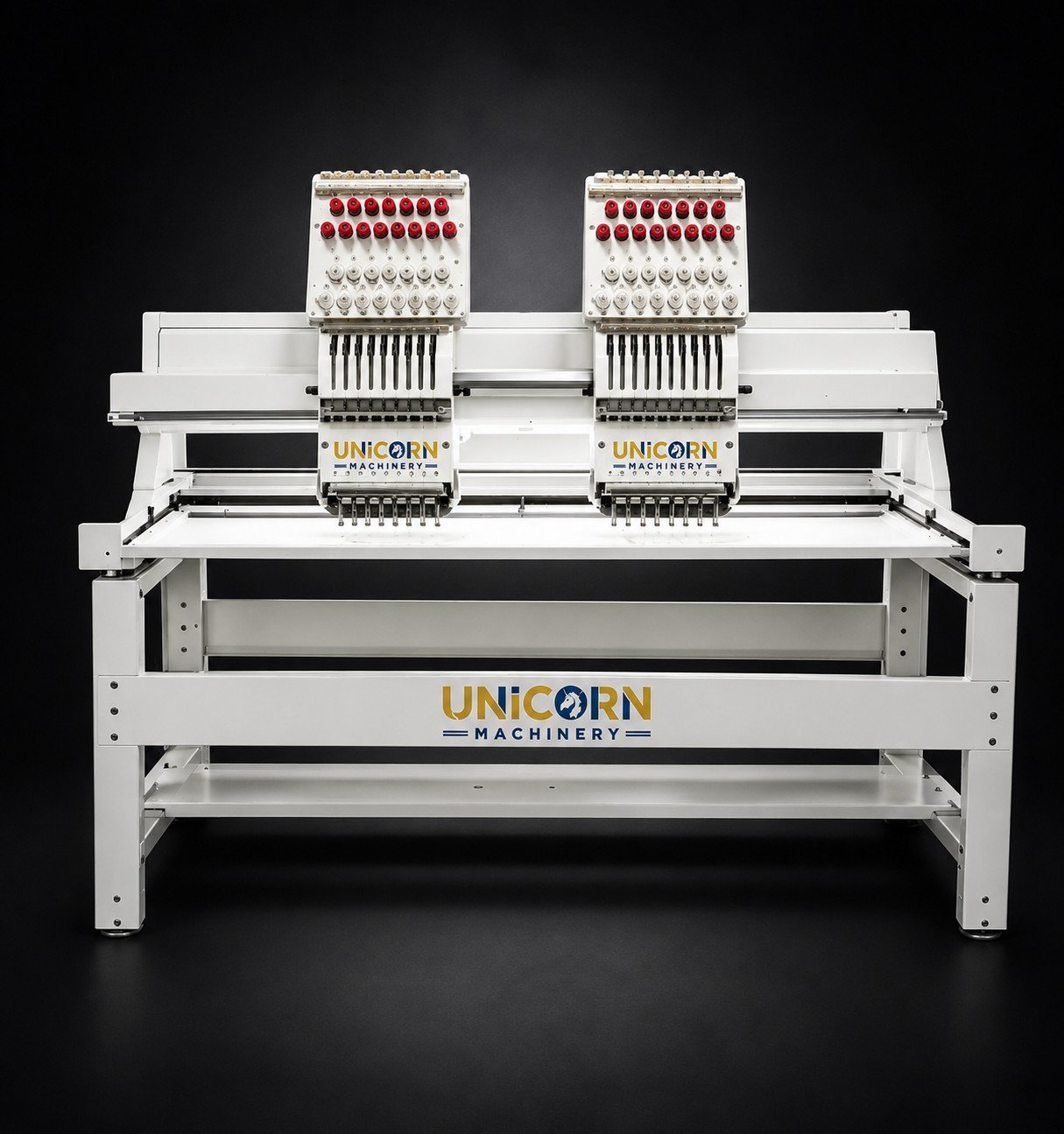

CB1202 / CB1502 Two Head Embroidery Machine
Main Shaft Speed
1200 RPM
Dual Head Production
Two embroidery heads operate together for improved production capacity.
High-Speed Operation
Main shaft speed of up to 1200 RPM supports efficient embroidery production.
Dahao A15 Pro Control
Computerized control system supports convenient and accurate machine operation.
500mm Head Spacing
Designed with practical spacing for flexible dual-head embroidery production.
Technical Data
Parameter Specifications
Machine Type
Two Heads Embroidery Machine
Number of Heads
2
Needles / Head
12 / 15 Needles
Main Shaft Speed
1200 RPM
Control System
Dahao A15 Pro
Voltage / Power
AC100-240V / 50-60Hz 800W
Machine Dimensions
2440mm × 1260mm × 1550mm
Weight
200 KGS
Drive Mode
Servo Motor
Interface Type
USB, Network Port, Serial Port
Embroidery Area
500 × 400mm / 800 × 500mm
Head Spacing
500mm
Accessories List
Embroidery Frame
Flat embroidery frame, garment embroidery frame and cap embroidery frame.
Bobbin
Hirose 1.0
Needle
Organ Needle 12# Sharp Point
Color Change Structure
Cam Color Change
Thread Trimmer Assembly
Automatic Thread Trimming + Thread Holding Facility
Our Products
Explore Our Wide Range
Of Embroidery Machines
Latest solutions, and decades of experience. Contact Us
Information
Frequently Asked
Questions
Find answers to common questions about our computerized embroidery machines, applications, configurations and support. Please feel
free to contact us if you need any additional information or assistance.
free to contact us if you need any additional information or assistance.
Unicorn Machinery offers a versatile range of computerized embroidery machinery including single-head, high-speed single-head, two-head, four-head, multi-head and flat embroidery machines for different production requirements.
Our embroidery machinery can support applications including garments, caps, flat fabrics, shoes and socks. Specialized configurations can also support sequin, bead and cord embroidery requirements.
Yes. Machine configurations can vary according to production capacity, embroidery area, number of heads, needle requirements and application. Optional systems and attachments can also be selected according to specific embroidery needs.
The right machine depends on your production volume, products to be embroidered, required embroidery area and desired output. Our team can help you compare suitable single-head, multi-head and specialized configurations based on your requirements.
Yes. Specialized embroidery configurations are available for applications such as sequin, bead and cord embroidery. Machine attachments and optional systems can be selected according to the required embroidery style and production needs.
