AIR JET LOOM
Advanced Air Jet Loom for High-Speed Textile Weaving
Unicorn Machinery provides advanced Air Jet Loom Machines designed for fast, efficient and consistent weaving in modern textile production environments. Air jet weaving technology uses controlled compressed air for weft insertion, helping achieve high-speed operation with smooth and precise fabric formation across suitable yarn and fabric applications.
Built with a strong focus on productivity and dependable performance, our Air Jet Loom solutions are suitable for textile manufacturers and weaving units looking to improve output, maintain consistent weaving quality and support continuous production. The machines combine modern control systems, efficient weft insertion and production-focused engineering for demanding weaving applications.
Enquire About This Machine
AIR JET LOOM MODEL

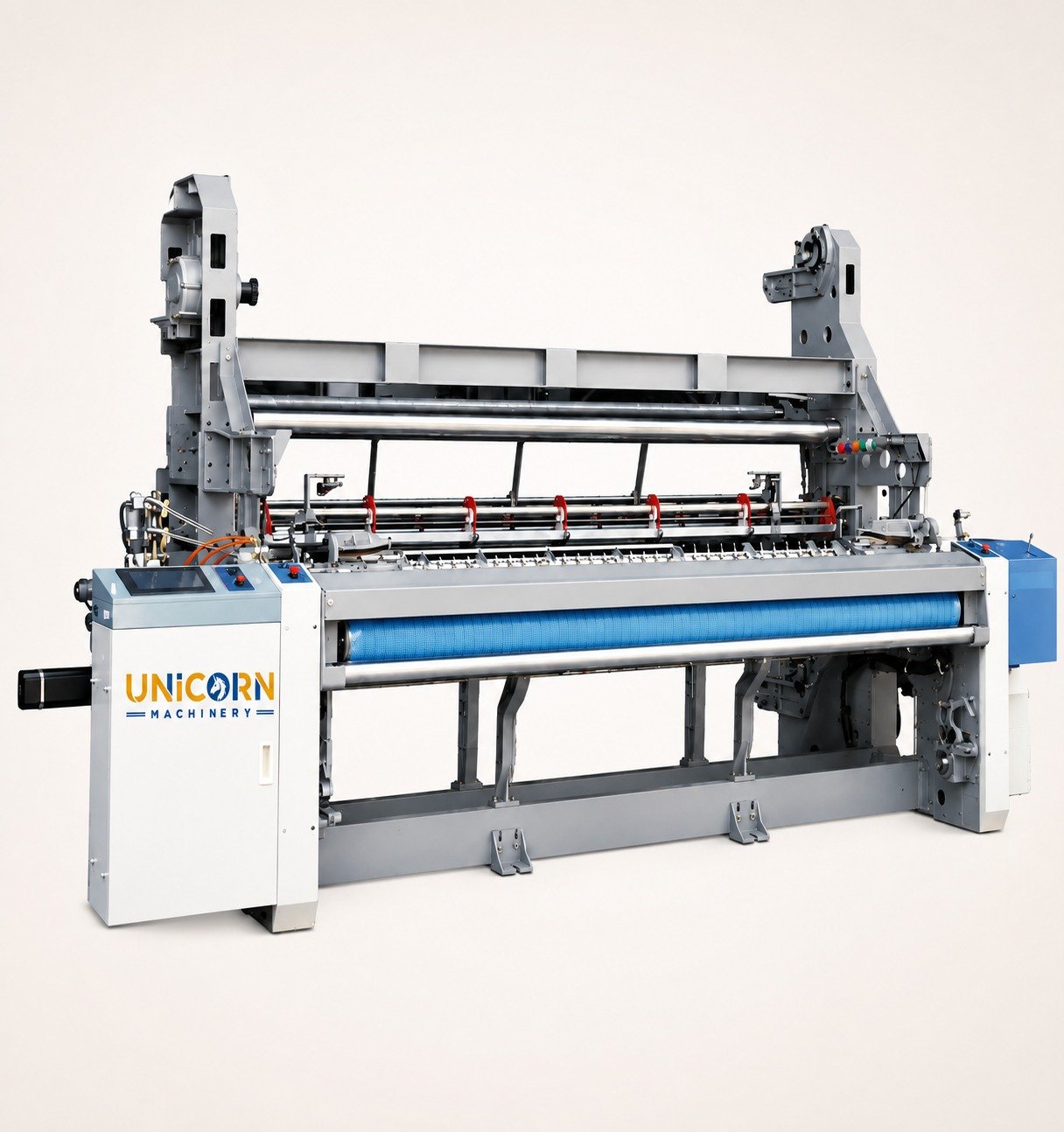

AQ-9100 Air Jet Loom
High-speed air jet weaving technology engineered for efficient weft insertion, stable operation and versatile fabric production.
MODEL
AQ-9100
High-Speed Air Jet Loom
Main Features
Designed for High-Speed & Stable Weaving
The AQ-9100 features a widened integrated wallboard structure designed to improve the fixing of the warp guide wall plate and strengthen overall machine rigidity. This provides a solid foundation for high-speed weaving while helping reduce machine vibration.
High-Speed Weft Insertion
Designed for weft insertion speeds of up to approximately 2300 meters per minute.
Strong Integrated Structure
Widened wallboard construction improves overall rigidity and supports stable high-speed operation.
Efficient Air System
Energy-saving main and auxiliary nozzle technology supports efficient weft insertion at lower air pressure.
Flexible Weaving Configuration
Supports different machine configurations according to fabric specifications and production requirements.
VERSATILE APPLICATIONS
Scope of Application
The AQ-9100 can be configured according to customer requirements and different fabric specifications, supporting a broad range of textile weaving applications.
Multiple reed widths, yarn ranges and weft
selection configurations available.
Silk
Denim
Technical Fabric
Cotton Fabric
Cotton Gauze
Velvet
TECHNICAL DATA
AQ-9100 Key Specifications
Production-focused configuration options for different weaving requirements.
Nominal Reed Width
170 – 380 cm
Maximum Weft Insertion
2300 m/min
Weft Selection
2 / 4 / 6 / 8 Color
Motor Options
2.2 – 6.5 kW
| Item | Specification |
|---|---|
| Model | AQ-9100 |
| Nominal Reed Width | 170, 190, 210, 230, 260, 280, 300, 340, 360, 380 cm |
| Staple Fiber Range | Ne100 to Ne2.5 |
| Filament Range | 22 dtex to 1350 dtex |
| Weft Selection | Two-color, Four-color, Six-color, Eight-color |
| Parking Brake | Controlled by electromagnetic brake |
| Maximum Weft Insertion Rate | 2300 meters/minute |
| Nozzle | Main nozzle and auxiliary nozzle used in conjunction |
| Reed | Special-shaped reed |
| Opening Mechanism | Crankshaft connecting rod, active cam, dobby and large jacquard opening options |
| Let-off Method | Active loose let-off / Electronic let-off |
| Warp Beam Diameter | Ø800 mm standard; Ø914 mm and Ø1000 mm options |
